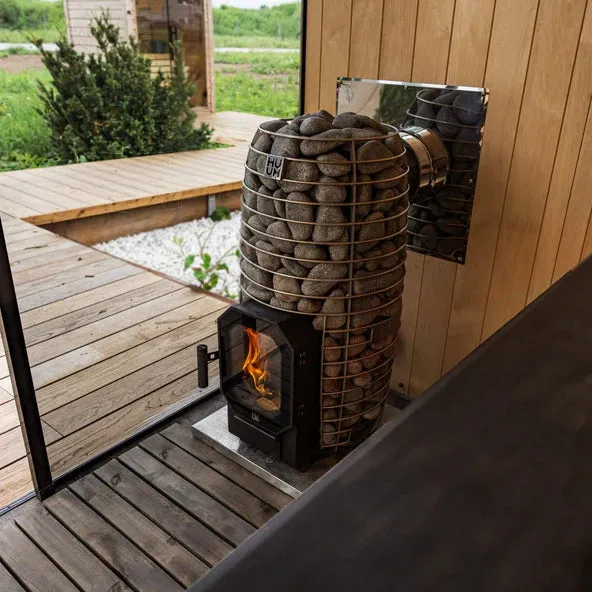

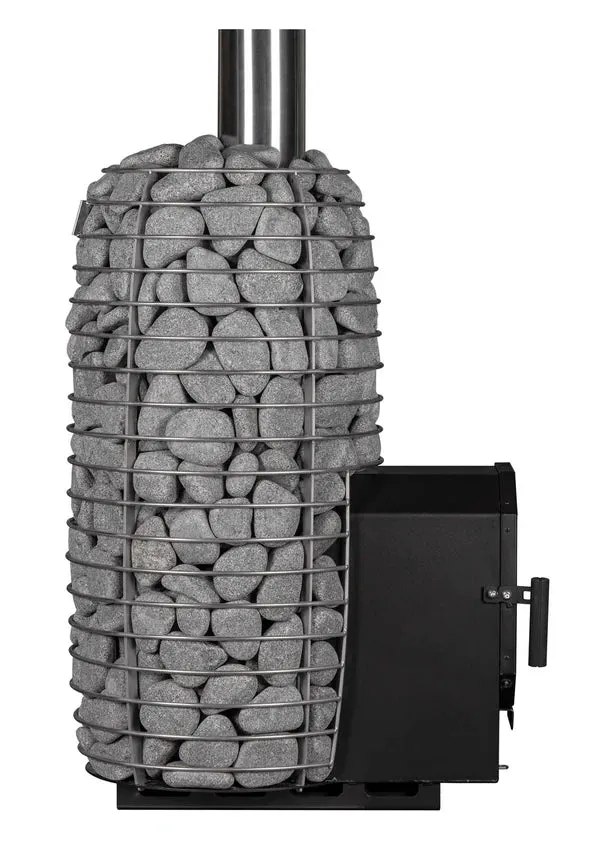

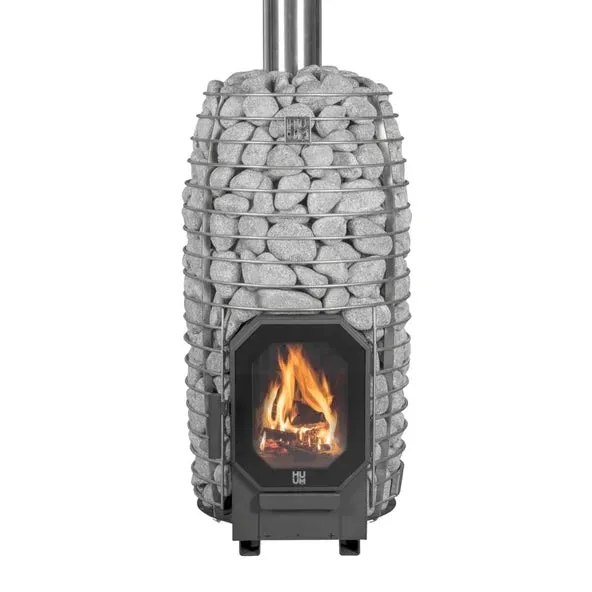

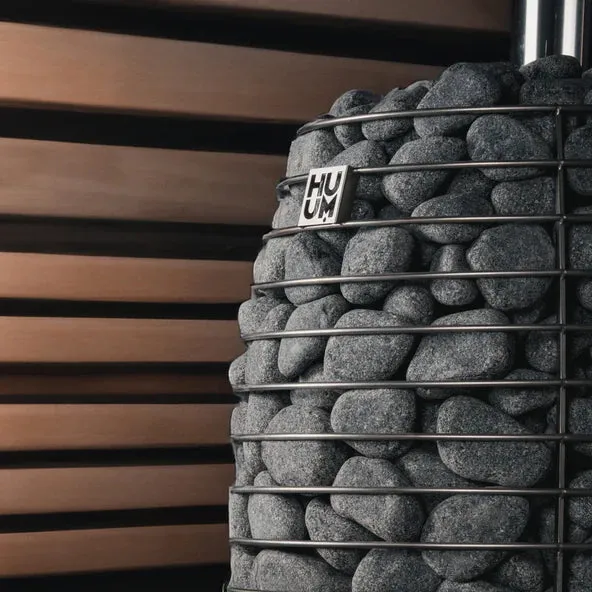

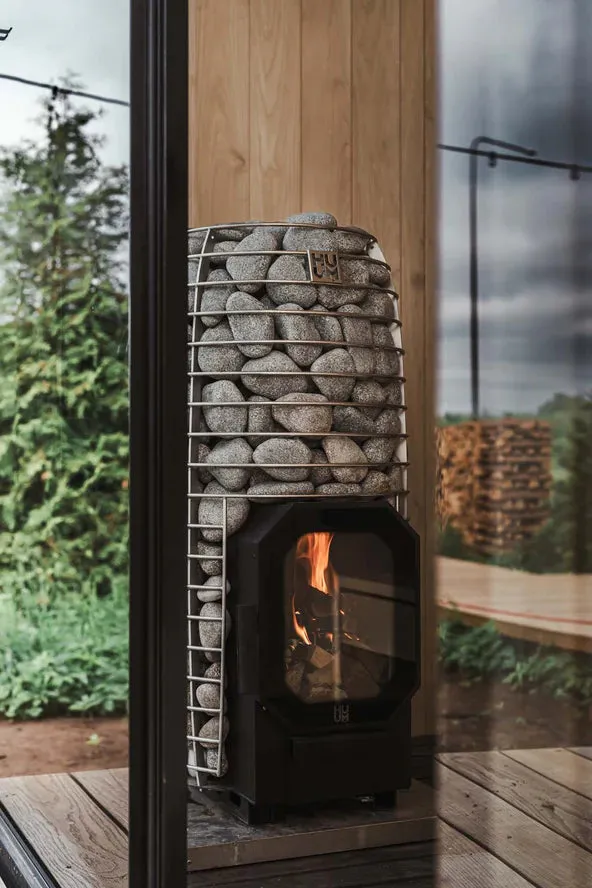

HUUM HIVE Flow Wood-Burning Sauna Stove, 9.8kW
The HUUM HIVE Flow Sauna Stove stands out as one of the most efficient and environmentally sustainable heaters for sauna rooms from 282 to 635 cubic feet (CF). Its innovative design ensures that 75% of the heat from the firewood directly heats your sauna rather than escaping through the chimney.
- Wood-burning
- Unique design
- Economical wood use
- Low environmental impact
- Mild and long-lasting steam
- Innovative patent pending furnace construction
- Designed, engineered, and made in Estonia
- For sauna rooms from 282 to 635 cu. ft.
- 330 pound stone capacity (required 10 boxes sold separately)
- Dimensions: 20.7"W (526mm) x 24.8"D (630mm) x 34.8"H (884mm)
- Limited 5-year warranty (excluding elements)
Includes:
- Sauna Stove
- Metal Grate
- Heat Resistant Glove
- Splints
- Metal Fixing Plates (2)
- Ash Grate
- Cleaning Hatches (2)
- Ash Drawer
- Installation and Operational Manual
- 5-Year Limited Warranty (excluding elements)
| Model | HIVE Flow |
|---|---|
| Kilowatt Rating | 9.8kW |
| Primary Fuel | Wood |
| Maximum Firewood Length | 16" (400mm) |
| Minimum Cubic Feet | 282 |
| Maximum Cubic Feet | 635 |
| Minimum Room Height | 75" (1905mm) |
| Flue Connection Location | Top, Back |
| Heater Weight | 148 lbs |
| Shipping Weight with Sauna Stones | 478 lbs |
| Safety Distance Front to Back | 50.8" (1291mm) |
| Safety Distance Left to Right | 33" (826mm) |
| Width | 20.7" (526mm) |
| Depth | 24.8" (630mm) |
| Height | 34.8" (884mm) |
Optional Addons:
HUUM Barrel Chimney Kit
Sauna Barrel Wood Stove Chimney Kit
This barrel chimney set is designed to extend straight up through the ceiling and is designed for use with HUUM wood-fired sauna stoves inside Barrel saunas. The set includes a single-wall 0.25m pipe, a welded chimney base, a double-wall 0.5-meter chimney, a cover plate in two parts for the ceiling, double-wall straight pipe 1 meter, universal rubber roof flashing, a rain collar, and a chimney cap.
- Through ceiling
- Compatible with all HUUM wood sauna stoves
- Stainless steel
- Designed for Barrel sauna use
- Mounts in vertical position
- Works with smaller spaces
- Designed, engineered, and made in Estonia
- Limited 5-year warranty
Includes:
- Single-wall pipe
- Welded chimney base
- Double-wall chimney
- Inclined ceiling cover plates (2 parts)
- Double-wall straight pipe
- Universal rubber roof flashing
- Rain collar
- Chimney cap
- Installation manual
- 5 year limited warranty
| Model | BARREL CHIMNEY KIT |
|---|---|
| Single-wall pipe length | 9.8" (250mm) |
| Double-wall chimney length | 19.7" (500mm) |
| Double-wall straight pipe length | 39.37" (1000mm) |
| Roof Flashing Material | Universal rubber |
| Chimney Material | Stainless Steel |
| Total Length | 78.7" (2000mm) |
OPTIONAL ADDONS:
HUUM Thru-Wall Chimney Kit
Sauna Wood Stove Chimney Set, Thru-Wall
This chimney set is designed to extend through the wall and is compatible with HUUM's wood-fired sauna stoves. The set includes a single-wall 1m pipe, Single-wall elbow with cleaning hatch, Single-wall pipe 0.25 m, chimney base, a double-wall 0.5-meter chimney, a cover plate in two parts for wall, a 90-degree double-wall elbow, a double-wall 1-meter pipe, a chimney element bracket, and a chimney cap.
- Through wall
- Compatible with all HUUM wood sauna stoves
- Stainless steel
- Mounts in vertical position
- Works with smaller spaces
- Designed, engineered, and made in Estonia
- Limited 5-year warranty
Includes:
- Single-wall pipe (2)
- Chimney base
- Single-wall elbow with cleaning hatch
- Double-wall chimney
- Wall cover plates (2 parts)
- 90-degree double-wall elbow
- Double-wall pipe
- Chimney element bracket
- Chimney cap
- Installation manual
- 5 year limited warranty
| Model | THRU-WALL CHIMNEY |
|---|---|
| Single-wall pipe (1) length | 39.37" (1000mm) |
| Single-wall pipe (2) length | 9.8" (250mm) |
| Double-wall chimney length | 19.7" (500mm) |
| Double-wall pipe length | 39.37" (1000mm) |
| Material | Stainless Steel |
| Total Length | 102.4" (2600mm) |
