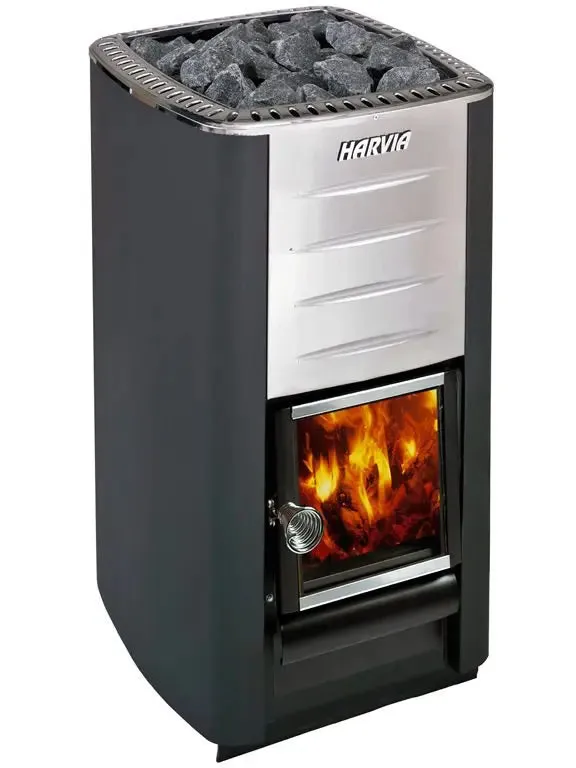

A stylish wood-burning stove perfect for outdoor saunas
The Harvia M3 is classic and suitable for smaller, wood-burning saunas. It turns a sauna bath into a pleasurable experience and adds a touch of a traditional sauna atmosphere. The even heat and efficient air circulation guarantee an enjoyable bath.
The Harvia M3 comes equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The colour of the stove is elegant graphite black, and it has a stainless steel air-flow spoiler. The M3 stove can be equipped with a pipe-model water heater.
The recommended size of the sauna room is 64–140 sq ft, and the maximum amount of stones is 65 lbs.
*Please note: 6" stove piping, protecting steel flashing, and chimney collar will need to be sourced locally.
STOVE REQUIRES THE ADDITIONAL PURCHASE OF THE FOLLOWING:
- Stones
- Connection to chimney
Add the protective sheaths for your wood-burning stove
The protective sheaths for wood-burning stoves significantly shorten the safety distances to burning material – in practice, this helps the stove fit into a smaller space. The protective sheath is attached to the stove and shaped around it, making it look sleeker.
| Model | WKM3 |
| Sauna room min. cu ft (m3) | 212 (6) |
| Sauna room max. cu ft (m3) | 459 (13) |
| Stone capacity max. lbs (kg) | 66 (30) |
| Dimensions width in (mm) | 15 3/8 (390) |
| Dimensions height in (mm) | 28 (710) |
| Dimensions depth in (mm) | 17 (430) |
| Weight lbs (kg) | 99 (45) |
| Heater output kW | 16,5 |
| Safety distance to sides and back, masonry walls E, in (mm) | 2 (50)* |
| Safety distance to sides (B) and back (C), walls and benches made of inflammable materials, in (mm) | 11 7/8 (300) |
| Safety distance to front (D) in (mm) | 11 7/8 (300) |
| Safety distance from upper surface to ceiling A min. in (mm) | 51 1/8 (1300) |
| Fire chamber cover in (mm) | 3/16 (5) |
| Location of smoke outlets at rear: from floor to centre of hole in (mm) | 22 (560) |
| Location of smoke outlets on top: from rear edge to centre of hole in (mm) | 4 3/4 (120) |
| Diameter of smoke outlet in (mm) | 4 1/2 (115) |
| * Leave 2″ (50 mm) between the stove and walls, provided that the air can circulate in front and to one side of the stove. If the stove is installed in a recessed wall, leave 4″ (100 mm) between the stove and walls for the air circulation. |
