- ➤ The Blower Kit PBAR-2427 Technical Specifications - Overall Pleasant Hearth Stove Blower Length with Guard Dimension: 9.75”x 3.62'' x 5.25''. Blower with 71" Power Cord, Volts: 110V to 120V, 3,200 RPM. Manual variable speed switch. You can use pre-drilled holes to mount to the back of the cooker to improve heat circulation.
- ➤ Compatibility -The Wood Stove Blower Fan is compatible with GHP Group Vent Free Stoves Only: VFS-PH20DT, VFS-PH30DT, VFS2-PH20DT, VFS2-PH30DT, VFS2-L20DT, VFS2-L30DT. The blower is compatible with all of the wood-burning stoves and pellet stoves that bear the brand name. ➤ Replacement PBAR-2427 variable speed blower kit is for use with Pleasant Hearth Wood Burning Stoves Model #WS-2417, WS-2720, WS3029, HWS-224172MH, LWS-127201 and LWS-13091.
- ➤ Adjustable Speed - This Pleasant Hearth PBAR-2427 wood stove blower is not thermostatically controlled. The blower speed is manually controlled by rotating the speed controlknob until the desired speed is achieved (Low to High). You can fine tune the speed and blower noise level where you want it. Variable speed operation allows adjustable heat distribution.
- ➤ Quickly Warm Your Home - The Pleasant Hearth Wood Stove Blower fan can improve heat circulation by up to 75%. Wood stove blower fan helps improve whole room heating, reducing the time required to heat the room and saving energy. The blower kit PBAR-2427 operates quietly while effectively spreading warmth throughout your home.

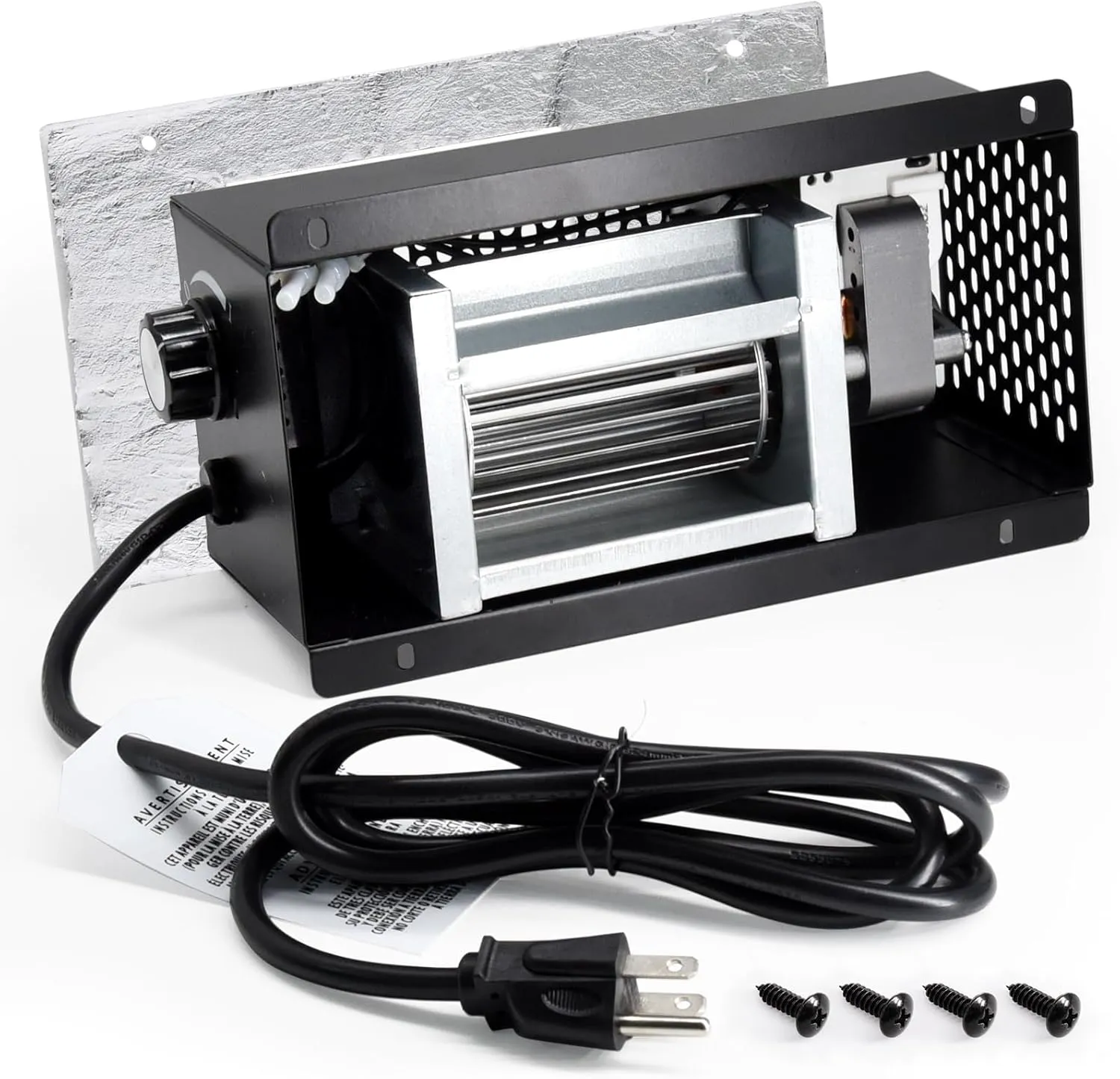

- ➤ PBAR-2427 Fireplace Blower Kit - Wood Stove Blower Kits include replacement blower fan, power cord, gasket, screws and installation instructions, 1-year warran/ty. The unit comes with all of the hardware necessary to get the job done and with easy-to-follow instructions.
➤ Designed and certified to only operate with Pleasant Hearth vent free stoves or wood burning stoves.
➤ Replacement for Part Number: PBAR-2427
Specifications:

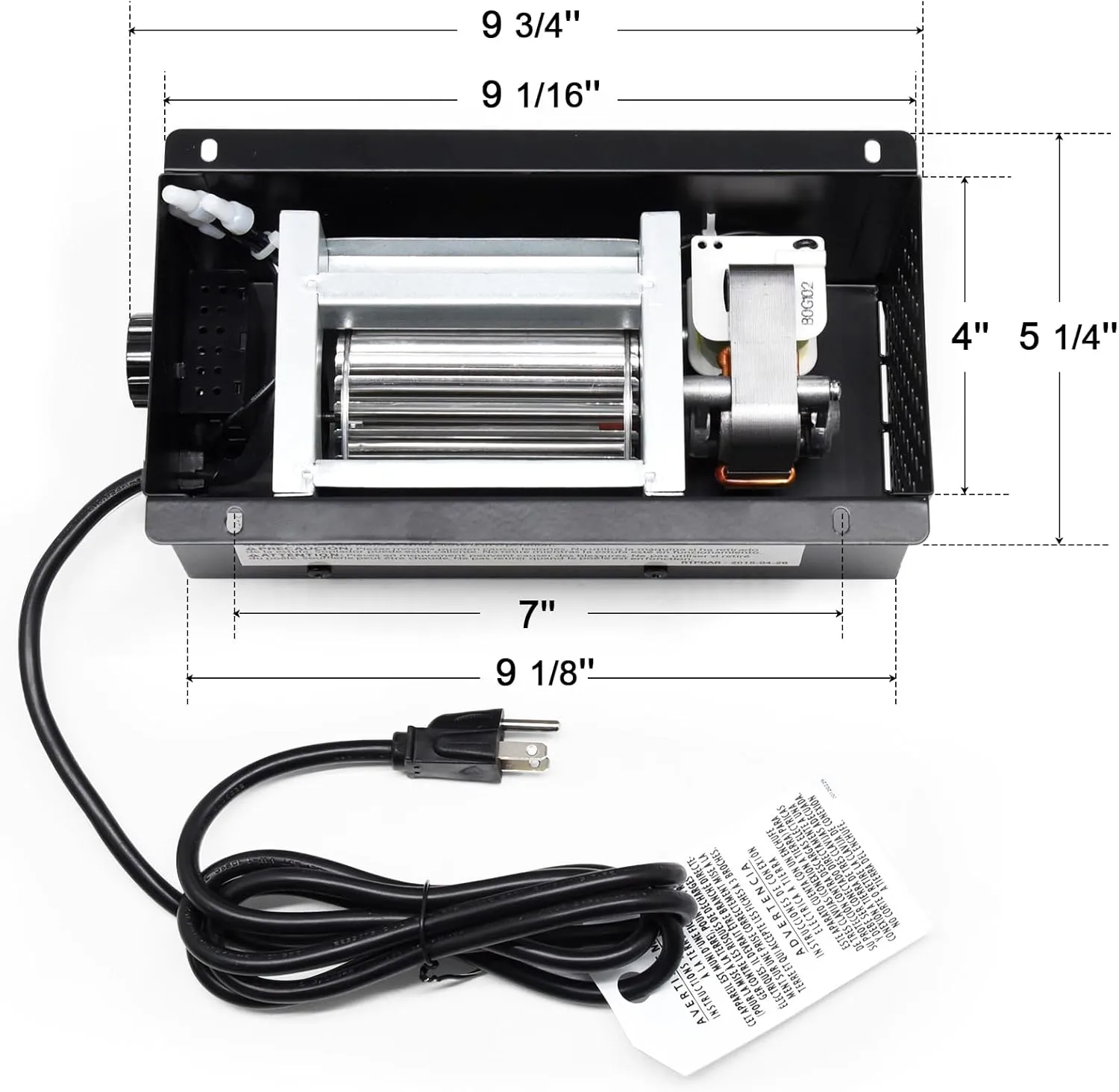

★ Dimesions: 9.75‘’L x 3.62''W x 5.25''H
★ Power Cord Length: 71"
★ Amp: 1 A
★ Volts: 110 to 120 VAC at 60 Cycle
★ Operation: Variable speed control
★ Speed: 3200 RPM
For installation with Pleasant Hearth Wood Stove
👉 The blower is to be installed at the rear of the stove,on the rear heat shield. Align the blower and gasket mounting holes with those on the rear heat shield.
IMPORTANT:
👉 Ensure the blower and gasket are oriented correctly. The blower wheel and gasket cut-ot must align with the cut-out in the rear heat shield. Fasten the blower and gasket to the rear heat shield using the four (4) screws provided.
👉 DO NOT over tighten screws. Be sure toplug the blower into a 3 prong gounded outlet. DO NOT tamper with the grounding prong on the cord.
