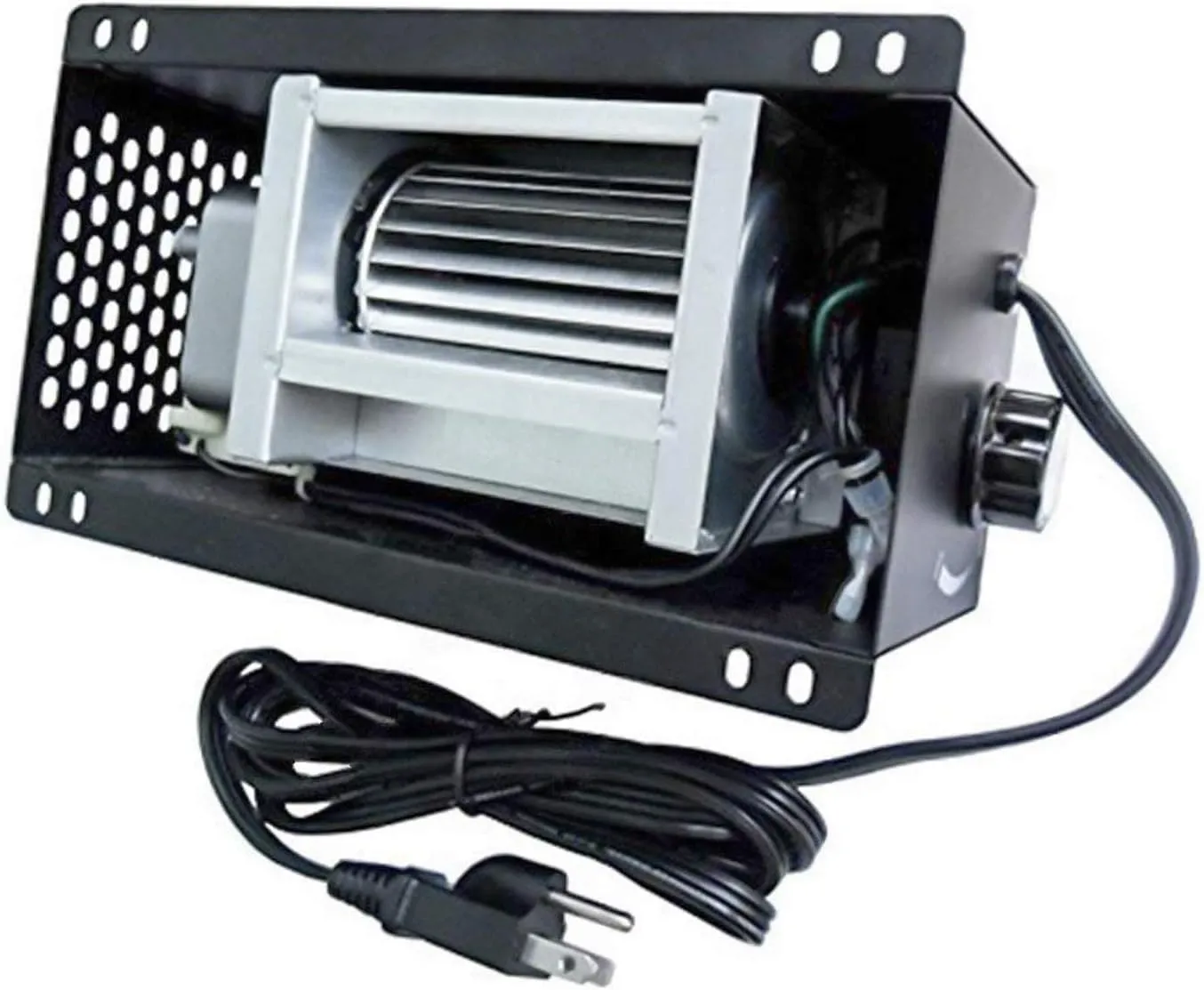

- COMPLETE KIT - Includes wood stove blower fan, 3-prong power cord(6' Cord Length), 4 mounting hardware screws, 1 heat gasket, 1 rheostat variable speed control
- UNIVERSAL FIT - This blower fan for most wood stove fireplaces, the models including (not completed): MHSC Windsor Series plate stoves: WR1000L02, WR1500L02, WR2000L02, WR247001, WR244, WR270007, WR300007. CFM: S244E, FW247001, S274E, FW27007, FW300007, CJW1000L02, CJW2000L02. GHP: HWS-224172MH-B, HWS-224172MH-BCA, HWS-227202, HWS-230292, LWS-127201-B, LWS-127201-BCA, LWS-130291-B, LWS-130291-BCA, LWS-127021-B. GHP Group Vent Free Stoves: VFS-PH20DT, VFS-PH30DT, VFS2-PH20DT, VFS2-PH30DT, VFS2-L2
- SPECIFICATIONS - Overall Blower Length with guard: 9.5 in. Height: 5.25 in. Depth 3.75 in. Blower size is 9 in long and 5.25 in tall. There are 4 holes to mount. They are 8 in apart left to right, and 4.75 in apart top to bottom. Manual variable speed switch. 110V to 120V with 6' cord. 2800 RPMS.
- HEATS THE SPACE QUICKLY - Improve whole room heating with this blower, it will reduce the time required to heat up the room. And the heat is much more uniformly throughout the room, rather than being overly-concentrated just around the fireplace. Replace your old stove blower, warming your home, warming your heart.
- INFINITELY ADJUSTABLE - Variable heat control offers the most customizable settings, you can fine tune the speed and blower noise level where you want it.
This blower is compatible with GHP Group, Monessen/Majestic (MHSC Brands), Majestic Dutchwest Windsor, CFM US Century Plate Steel Freestanding Wood Stove Fireplaces.
Make your wood burning stove even more efficient with this blower. When you add a blower to your wood burning steel stove, heated air from the stove will be circulated better throughout your room. This blower will allow you to heat a bigger space while using less fuel, which will save you money. And a more efficient wood burning stove means that you will spend less time going outside in the cold for more firewood.
Variable speed operation allows adjustable heat distribution. The blower is NOT thermostatically controlled, it is a manual variable speed switch. The blower speed is manually controlled by rotating the speed control knob until the desired speed is achieved. When turned on the first setting will be LOW. HIGH setting may be obtained by obtained by rotating the speed control knob clockwise.
Installation: The blower is to be installed at the rear of the stove, on the rear heat shield. Align the blower and gasket mounting holes with those on the rear heat shield.
IMPORTANT: Ensure the blower and gasket are oriented correctly. The blower wheel and gasket cut-ot must align with the cut-out in the rear heat shield. Fasten the blower and gasket to the rear heat shield using the four (4) screws provided. DO NOT over tighten screws. Be sure to plug the blower into a 3 prong gounded outlet. DO NOT tamper with the grounding prong on the cord.
Cleaning: Periodic cleaning of the blower is recommended. Dust or dirt accumulation could significantly restrict airflow. Restriction in airflow will reduce the efficiency of the blower and possibly damage the motor.
