- ► Fit For Harman Pellet Stove Parts Models - Harman Accentra 52I, Accentra FS (Accentra Cast), P61, P68, Advance, P43, PC45, XXV (25th Anniversary Model), P61A, P35I Insert, Accentra Insert, P38 (P38 , PP38 , Models with the Room Sensing Thermostat Control Board), Invincible Insert, Invincible RS. ► For Harman Wood & Coal - DVC 500, Mark I, Super Magnum Stoker. ► Replaces Harman Part Numbers: 3-20-00906, 32000906.
- ► Parameter of Harman 3-20-00906 - Length of Wire: 60.5 Inches, 18-2 Braided Wire, Two 1/4 Inch Female Spade Connectors.
- ► Function - The purpose of the room temperature sensor in a pellet stove is to send the temperature of the room to the stove's control system, which is then used to regulate the stove's heat output. In case the room temperature falls below the desired temperature, the stove will increase its heat output to warm up the room, while in case the room temperature rises above the desired temperature, the stove will reduce its heat output to maintain the desired temperature.
- ► Installation - This harman room sensing thermostat probe 3-20-00906 regulates the stoves heat output based on temperature setting while operating in 'Room Temp' Mode. Placement of the probe is important. Do not have on cold floors, by drafty areas or where direct sunlight can affect it. We recommend coiling the probe up and letting it rest on the back of the stove. Suggested for insert models - place to the side of the unit 2-5 ft. up on the wall.
- ► Rest Assured Purchase: This harman room temperature sensor 3-20-00906 supports 365 days return and exchange.

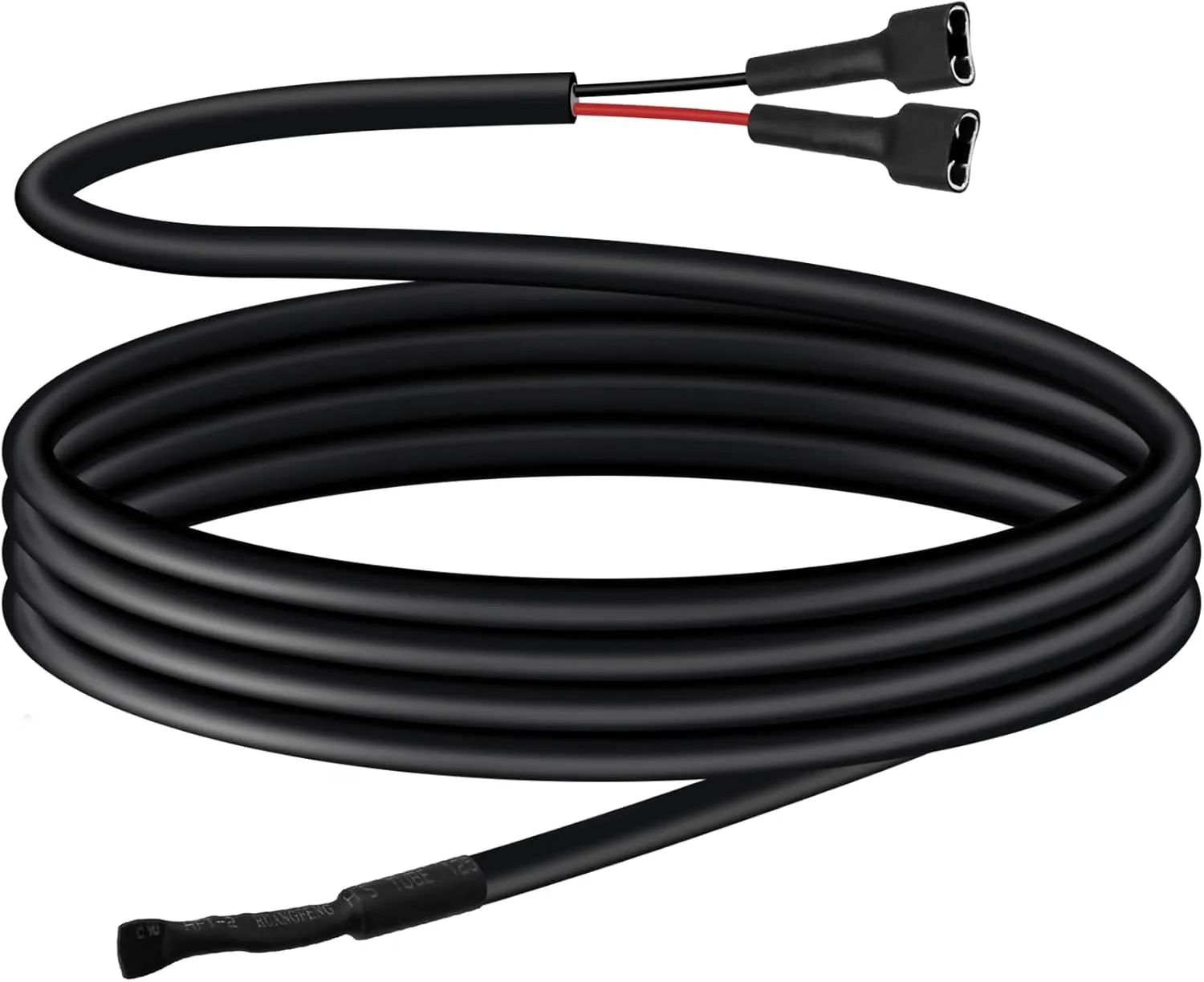

For Harman Pellet Coal Stove Room Air Sensor Thermostat Probe 3-20-00906.
Length of Wire: 60.5 Inches
18-2 Braided Wire
Two 1/4 Inch Female Spade Connectors
► Replaces Harman Part Numbers: 3-20-00906, 32000906.
► Harman Pellet Stove Parts Models - Harman Accentra 52I, Accentra FS (Accentra Cast), P61, P68, Advance, P43, PC45, XXV (25th Anniversary Model), P61A, P35I Insert, Accentra Insert, P38 (P38 , PP38 , Models with the Room Sensing Thermostat Control Board), Invincible Insert, Invincible RS.
► Harman Wood & Coal - DVC 500, Mark I, Super Magnum Stoker.
